The Retirement of R Packages with Many Reverse Dependencies

Edzer Pebesma, Roger Bivand

Overview

  • some history of OSGEO and r-spatial
  • why packages retire
  • how we tried to minimize damage to the CRAN ecosystem
  • lessons learned / future recommendations

Some history of OSGEO

This community has settled on one standard and three key C++ libraries:

  • Simple Feature Access, an open standard to define point-, line- and polygon-geometries and multi-forms of those
  • PROJ a C++ library for cartographic projections and datum transformations
  • GEOS for geometry measures, predicates and transformers of simple feature geometries
  • GDAL a library to read and write vector or raster data to/from more than 300 different file formats, databases, or web services

R, Python, Julia, QGIS, ArcGIS, PostGIS, etc all use this.

Some history of r-spatial (1)

  • Spatial R packages have been there from the start, and in S-Plus (e.g., MASS had spatial)
  • Since 2003 a community converged on using a set of classes for vector and raster data, using packages sp and raster
  • rgdal (2003) interfaced GDAL and PROJ
  • rgeos (2011) interfaced GEOS
  • maptools was a collection of various useful things
  • older, legacy packages include e.g. maps and mapproj
  • sp predates simple features, and mirrors shapefiles

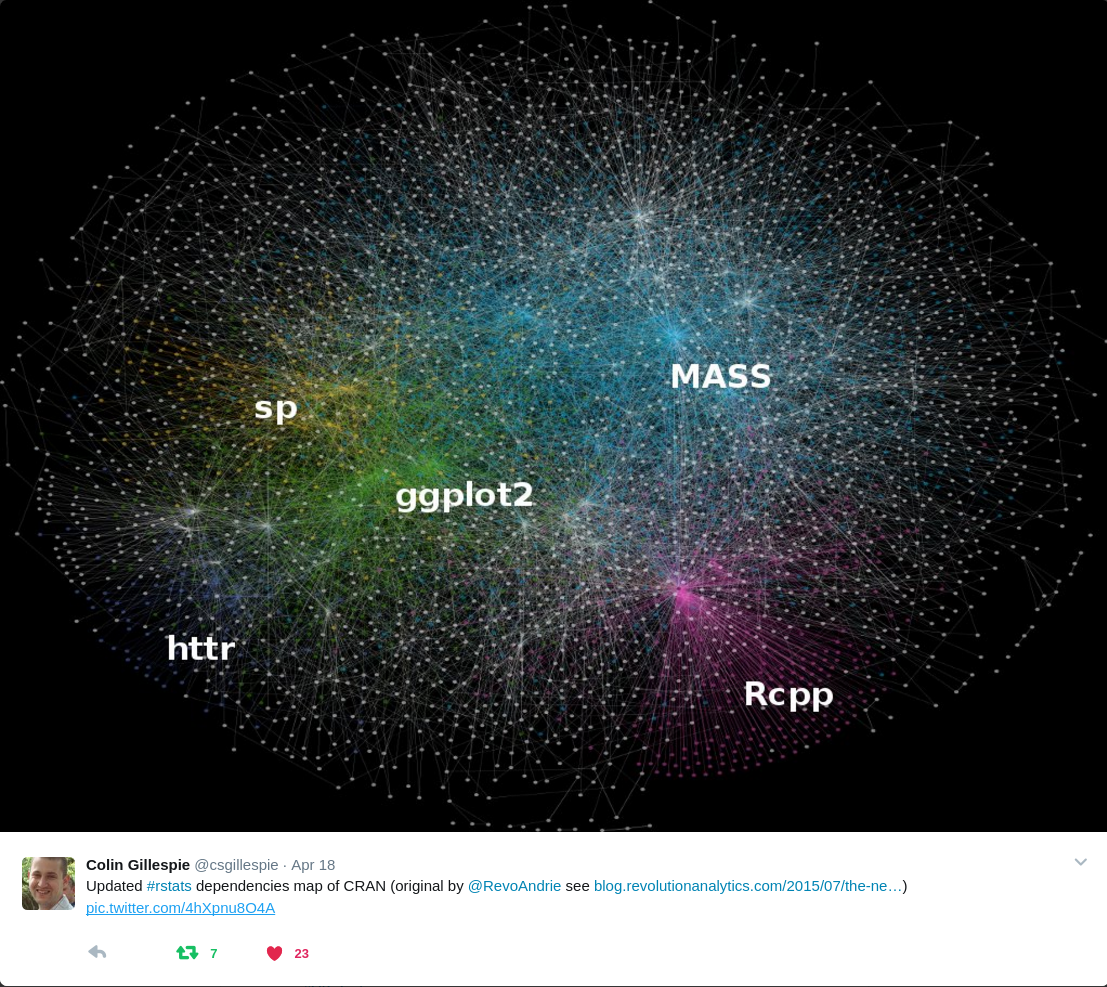

Reverse dependencies Sep 2021

Some history of r-spatial (2)

  • CRAN binary packages are static builds, meaning they include upstream libraries (GEOS, PROJ, GDAL)
  • CRAN check and build systems contain these libraries, they are not vendored in the respective R packages
  • the CRAN team needs to regularly update, or rebuild these
  • this involves communication (both ways), attention, and problem solving skills

Some history of r-spatial (3)

  • sf came out in 2016 and supports simple features in R
  • it uses S3 rather than S4, integrates with tidyverse and ggplot2
  • stars (2018) provided classes for the raster side and data cubes
  • terra (2020) uses S4 classes for raster and vector, and succeeds raster

Why packages retire

  • Maintaining packages can be a lot of work
  • Packages can get superseded by better solutions
  • Maintainers retire!

Why rgdal, rgeos and maptools retired

  • Roger Bivand, their maintainer, retired
  • The code is hard to read
    • uses .Call(), rather than Rcpp or similar
    • many conditional branches for upstream changes
  • simple features in R (sf) simplifies life, a lot.
  • raster data analysis moved to stars (2018) and terra (2020)
  • R Consortium funded an evolution project (Sept 21 call)

How?

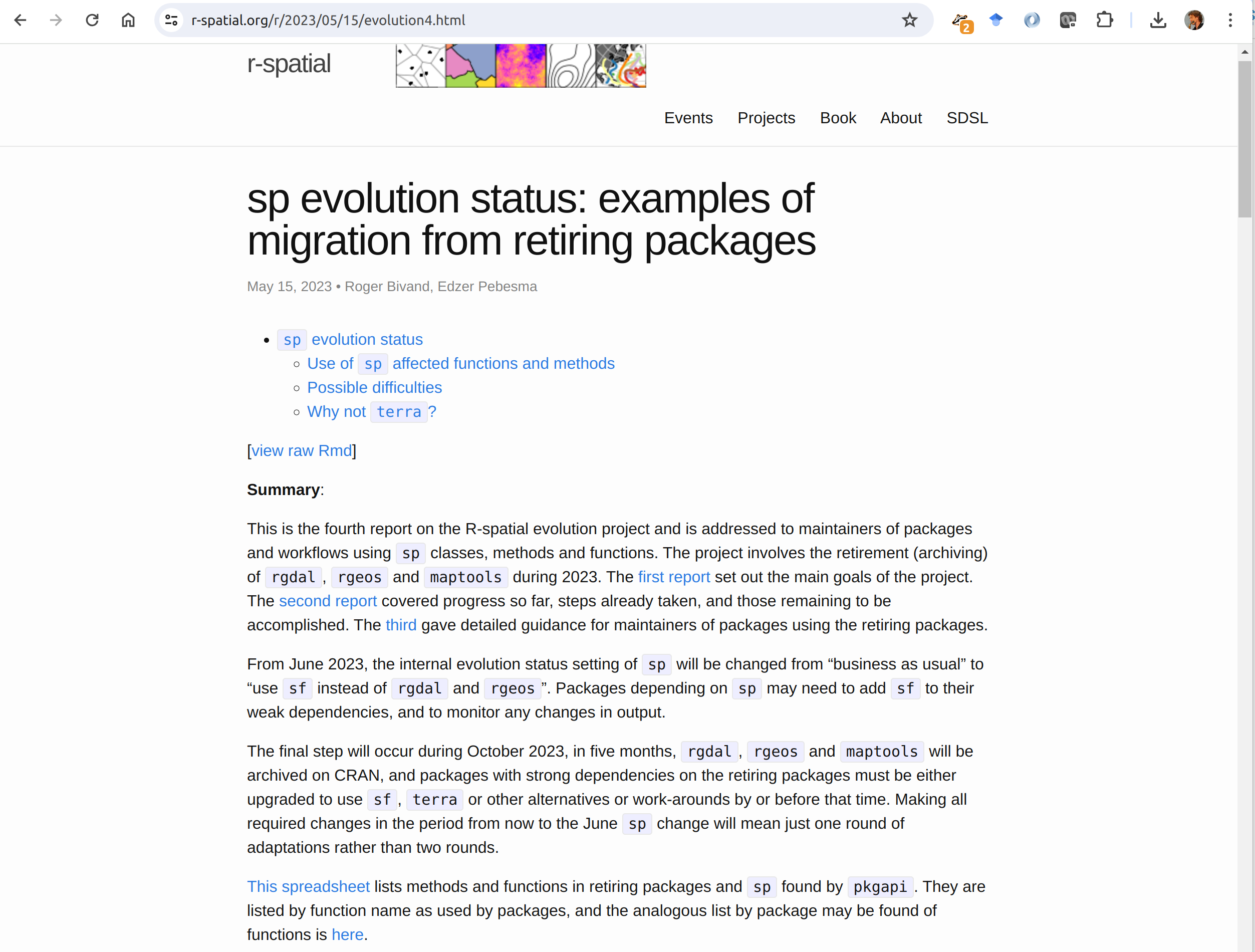

  • progress reported to four r-spatial.org evolution blogs (for motivation)
  • handling reverse dependencies (starting 2022 RC project)
    • package raster dropped dependency on rgdal and rgeos (Sept 2022), using terra instead
    • reverse dependency checks, emulating removal; monitor
    • heavy startup warnings in sp (worried people who were not affected!)
    • remove rgdal and rgeos dependencies of sp in favour of sf in june 2023

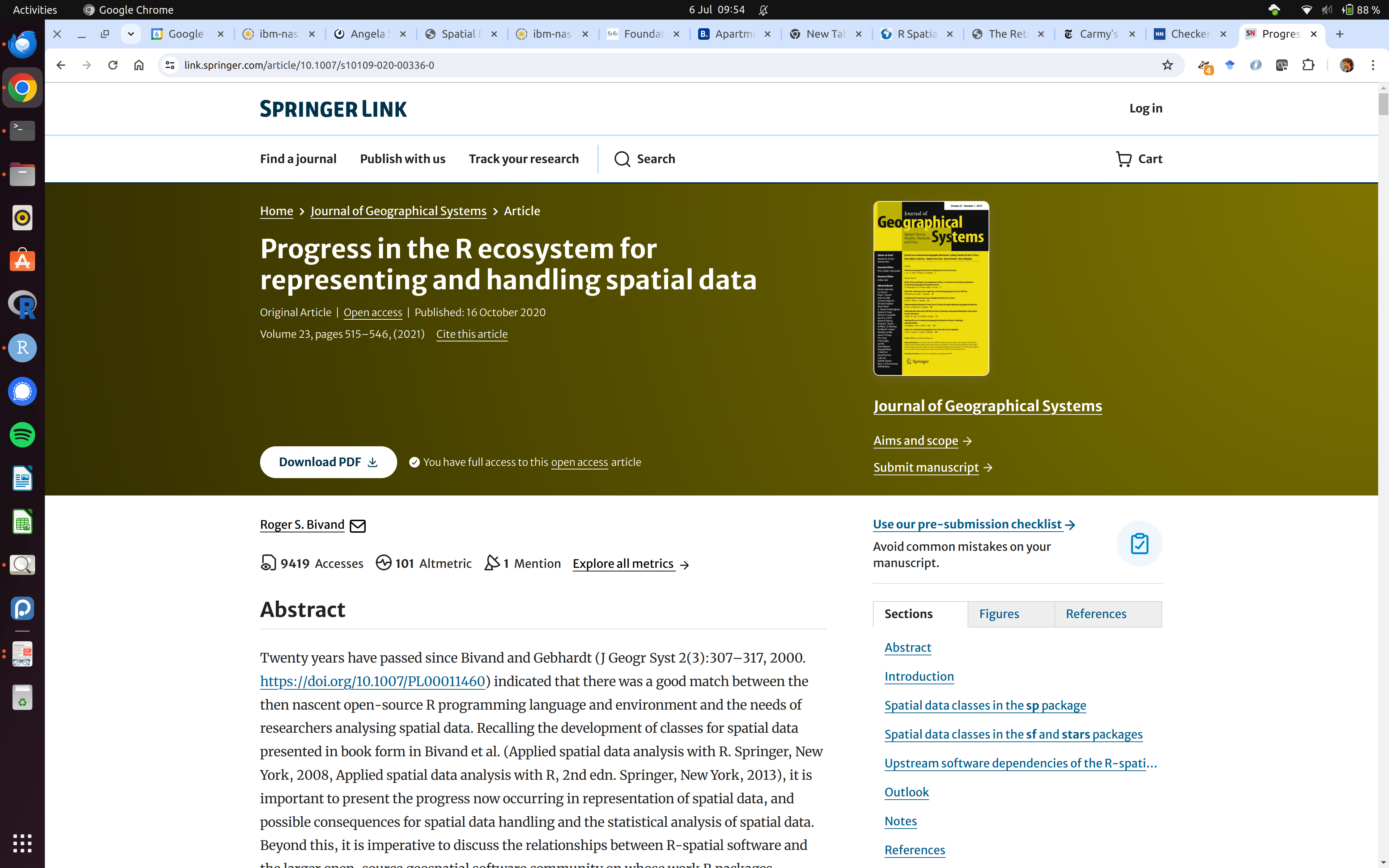

https://link.springer.com/article/10.1007/s10109-020-00336-0

Harder dependencies

  • fiesta (USDA) developed gdalraster, which provides a low-level GDAL interface for R
  • URSA now imports sf, and suggests gdalraster, terra, and stars
  • More response from Github, Gitlab and R-forge issues backed up by emails than from emails alone to pkg maintainers
  • it was necessary to be irritating, and provide patches for numerous pkgs (by RB)
  • pkgapi was very useful: what is a package using? (S4 methods reporting patchy)

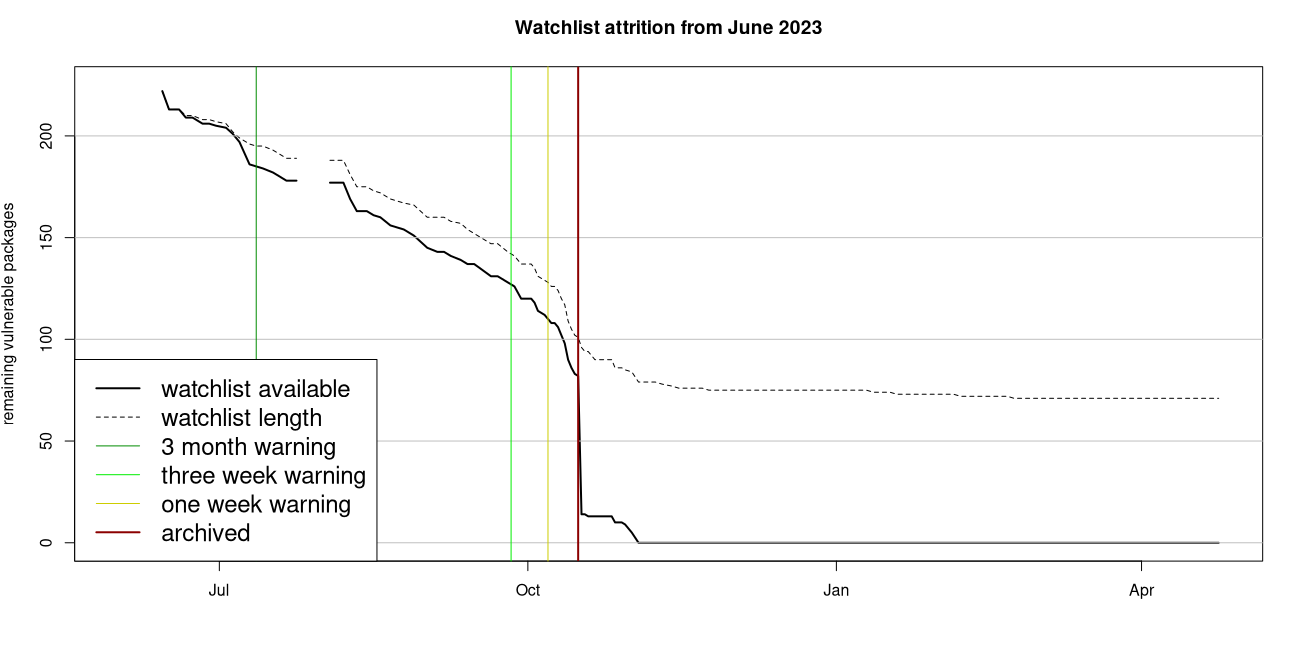

Watchlist: started jun 2023

  • ran nightly to see whether a revision had appeared
  • check whether it fixed revdep issue, look into & report
  • final removal at release date of Bioconductor 3.18 (Oct 2023)
  • Watchlist output and code used is on the GH evolution repo
  • Data and code is on github.com/r-spatial/evolution

Recommendations

If you want to retire one or more heavily used CRAN packages and limit damage to CRAN:

  • announce early, widely, loudly and often
  • actively approach package maintainers, irritate them, help them
  • closely watch the development of reverse dependencies
  • communicate with the CRAN team
  • ask for help and support from the community

Thanks to

  • Roger Bivand for his tireless efforts
  • R Consortium for supporting this project
  • A reference group of key package developers and user community representatives who helped us giving feedback on planning and approach
